Blanking Line
Processing of thckness(mm): 0.5-4
Processing width(mm): 80-500,100-1200,500-1850,500-2000
Press tonnage(T): 315,400,500,630,800
Number of stamping: 50-60
Maximum stamping length(mm): 2000,3000,4000,4500
coil weight: 8,15,20,25,30

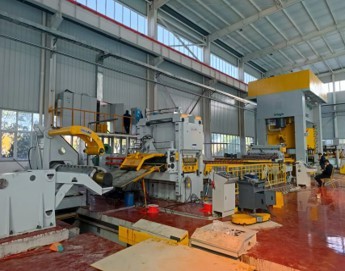

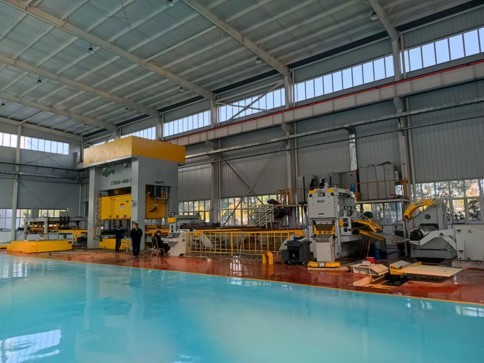

Blanking Line details
By uncoiling, flattening, blanking and stacking the metal coils, the coils are made into sheets of materials such as anisotropy, parallelogram, rectangle and trapezoid.
FEATURES:
1,Optional fixed/roll box straightener to ensure high quality panel quality.

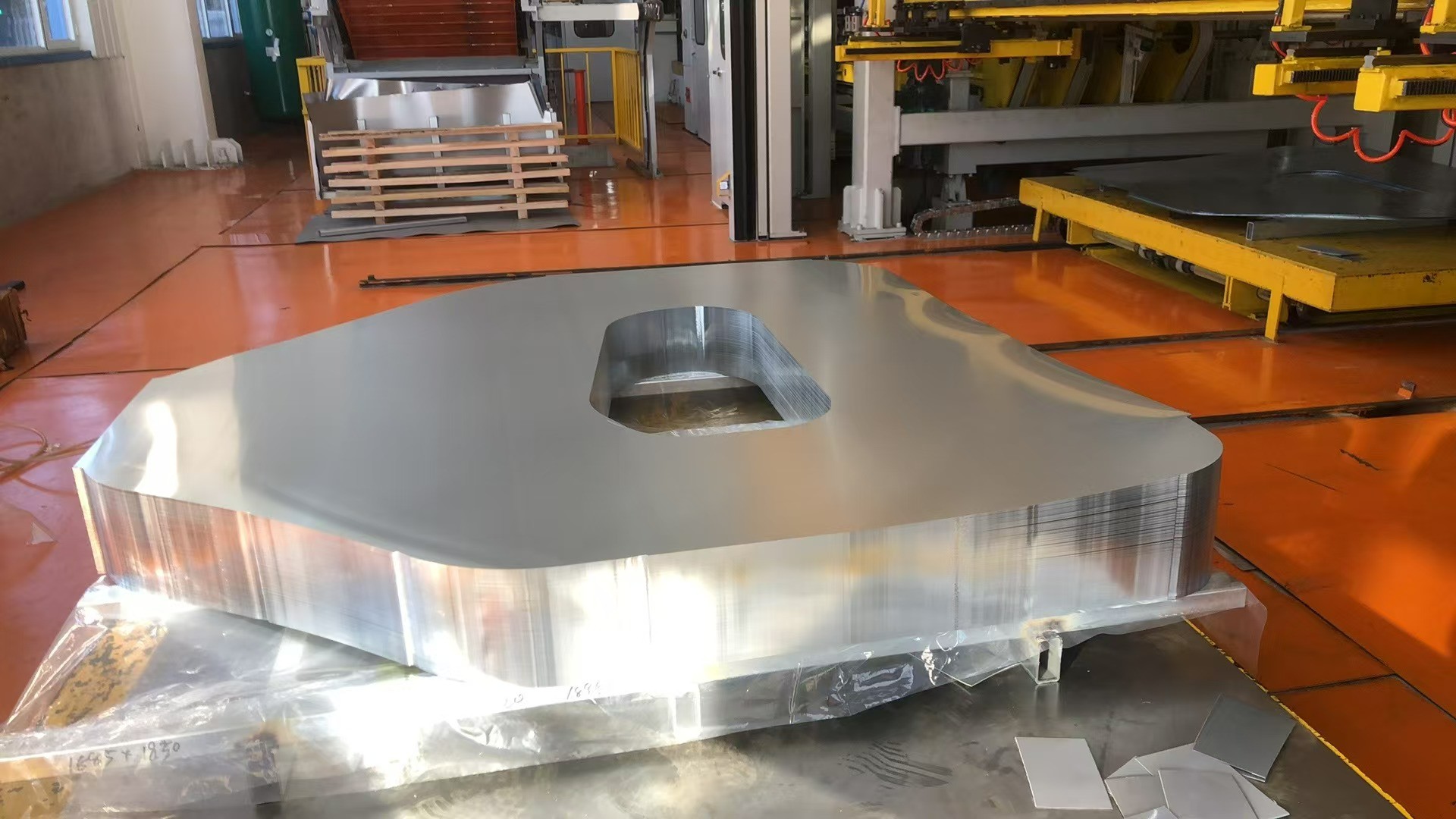

2,Using blanking die, can produce special-shaped parts.
3,With the use of oscilating cutting die, rectangular pieces,trapezoid pieces and parallelogram pieces can be produced.

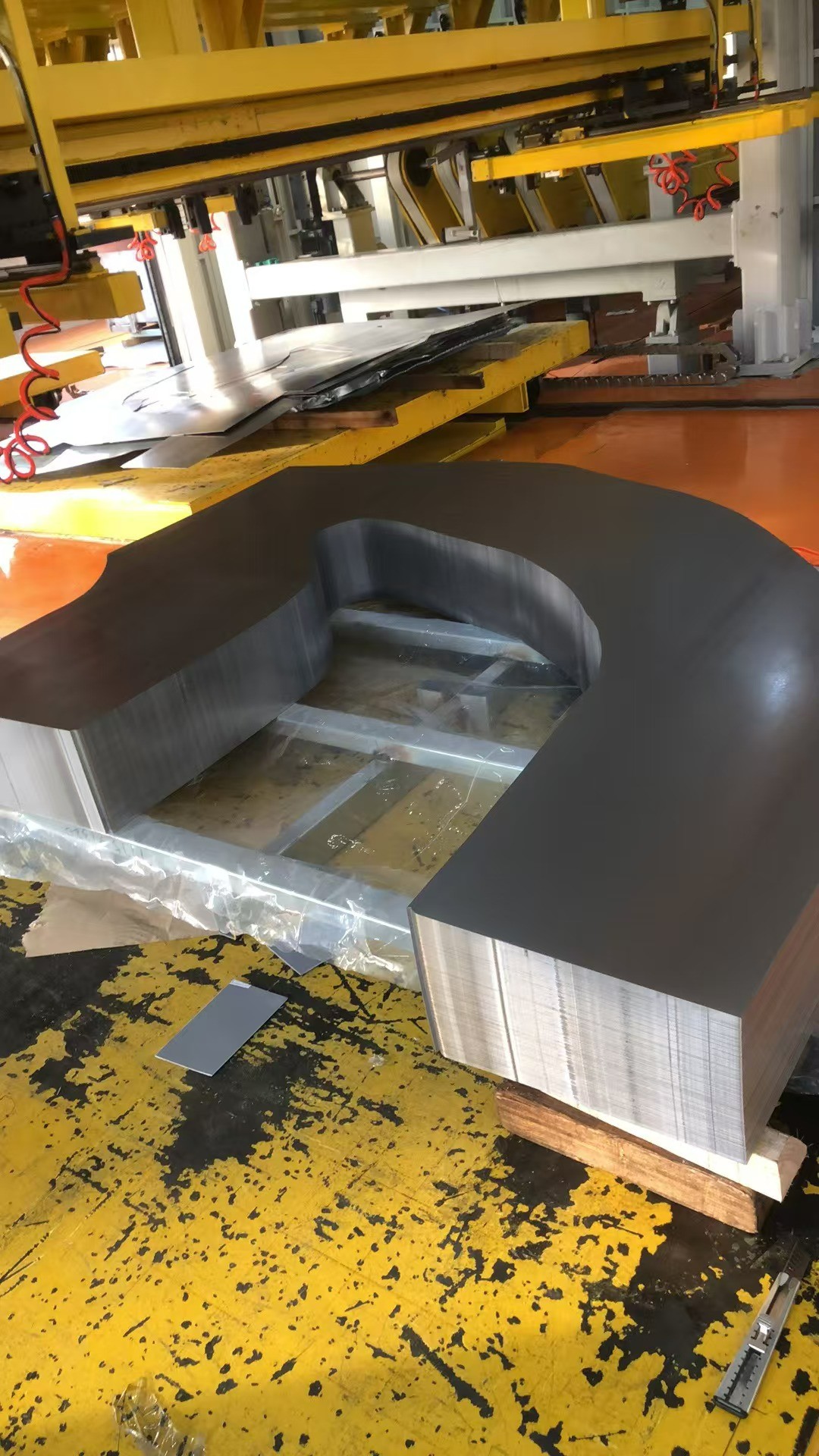

4,It can choose air cushion stacking, robot stacking,electromagnetic stacking, vacuum stacking and other forms, which is suitable for stacking steel plate,
aluminum plate, stainless steel plate and other kinds of metal plate neatly.
5,Friendly man-machine interface.
6,High precision servo system sizing.
7,Can realize automatic feed and block automatic adjustment, high production efficiency.
8,Automatic feed is optional.
